Concordia 52 - Design 2515

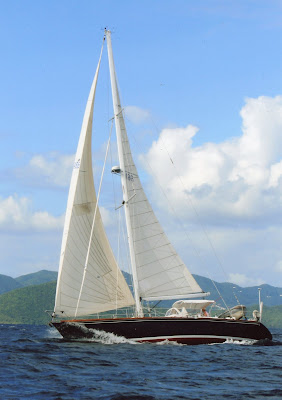

We were pleased to have received these images from the new owner of a Concordia 52 center cockpit, design #2515. The boat was constructed by Concordia Custom Yachts in 1988.

The following is an excerpt from our Designer's Comments regarding the design brief: "First, the boat should be a top performer under the IMS Rating Rule. The boat should be aesthetically pleasing with a timeless, classic appeal. Second, she should be a superior sea boat with major offshore racing and serious blue water cruising capability. Finally, in order to take advantage of Concordia's custom yacht building ability, we are to develop a series of suggested interior layouts and deck configurations".

Note the boat in the images is a center cockpit version.

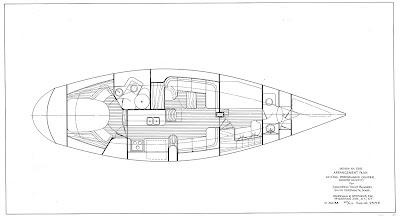

Here is the general arrangement plan for the center cockpit boat.

And here is a profile, inboard profile and 2 general arrangement options for the aft cockpit version showing 2 different keel configurations. The middle arrangement looks to be an alternate for a center cockpit.

Principal Dimensions
LOA 52'-4"
LWL 42'-0"
Beam 15'-5"
Draft 7'-0" or 10'-0" depending on keel configuration
Displacement 38,000 lbs
Ballast 18,500 lbs
Sail Area 1,310 sq ft
D/L 229
SA/D 18.54
