Designs 1631 & 1743 - Kestrel 22 and Sailmaster 22


This beloved design was utilized for two production series built boat models in the early 1960s with two distinct design numbers and with minimal differences. Design #1631, the Kestrel 22 was marketed by Seafarer Yachts of Huntington, Long Island but built by the Amsterdam Shipyard, which was owned and operated by DeVries Lentsch of Holland. The boats were built of fiberglass.

Here are the general arrangement and sail plans.


Design #1743, the Sailmaster 22, was also built in Holland by N. V. Werf Gusto as well as the De Nord shipyards and marketed by a company in Shelter Island, New York.

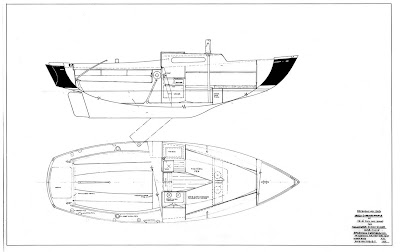

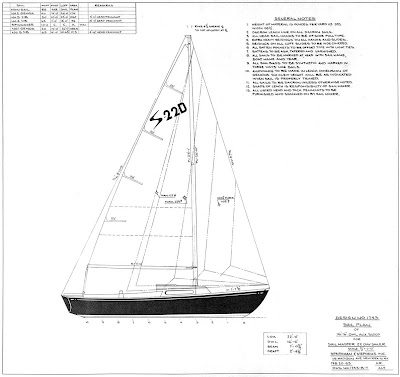

Here are the plans for the Sailmaster.


Many of these boats are still in service today. They can be acquired very inexpensively and make an excellent project boat.

And finally here are the beautiful lines.


Principal Dimensions
LOA 22'-0"
LWL 16'-6"
Beam 7'-0"
Draft 2'-4" (centerboard up) 5'-0" (centerboard down)
Displacement 3,650 lbs
