Tuesday, February 22, 2011

Design 1718 - Classic 37'


This 37' sloop was a refinement of design #1628, Nova (I will post a piece about this design at a later time). It seems this design was originally called the Walton 37', built by Grampian Marine, Ltd (follow this link for some history) of Ontario, Canada and marketed by George Walton of Annapolis, Maryland. At some point the name was changed. Apparently 30-40 boats were built to this design. The production run started in 1965.

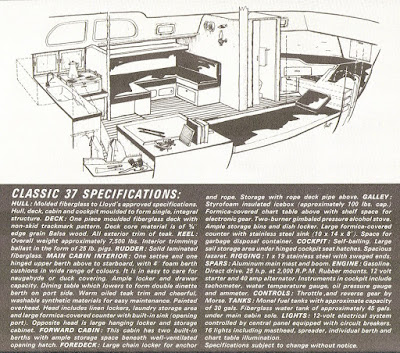

The boats were built of fiberglass with lead ballast keel and all were Lloyd's approved. Here's an excerpt from the original brochure. Double click for bigger, readable view.

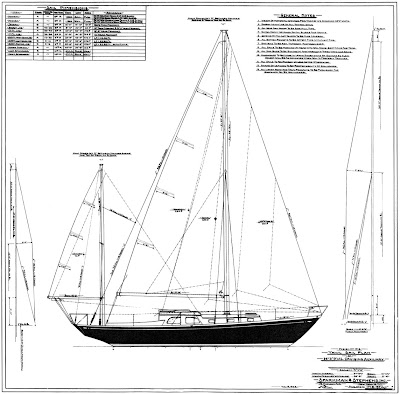

Here are the plans.


Principal Dimensions
LOA 37'-4"
LWL 26'-3"
Beam 10'-2"
Draft 5'-10"
Displacement 16,400 lbs
Ballast 7,400 lbs
Sail Area 639 sq ft
