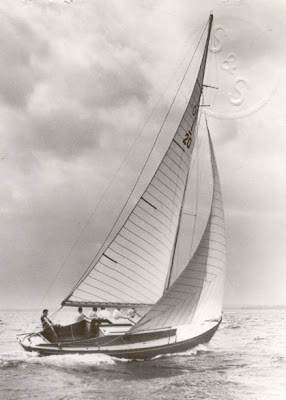

Islander Class - Design 164


The Islander Class was one of the designs generated from our Boston office and as such K. Aage Nielsen generated most of the plans. This was a stock design for the Henry R. Hinckley Company. The boat was later revised with more overhang and more sail area (and assigned design number #316). The revised model was renamed New Islander Class.


Here are the plans for the Islander Class.


And an article from Yachting magazine. Please double click for zoom.


Here's the general arrangement for design #316, New Islander Class.


Principal Dimensions
LOA 30'-0"
LWL 23'-0"
Beam 8'-4"
Draft 4'-9"
Displacement 9,600 lbs
Ballast 3,610 lbs
