Design 1968 - Galatea Class

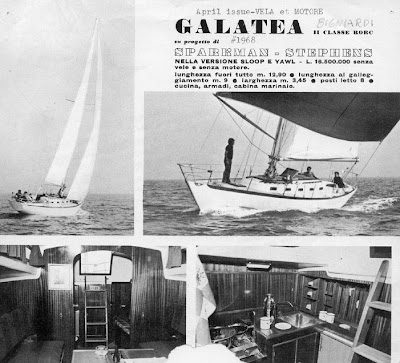

This production yacht was built by the Mariver Shipyard of Bologna, Italy. The boats were built of fiberglass. They were designed to the R.O.R.C. Rule, the design identical to a one-off named Moby Dick III. The prototype was launched in 1969 and the production run began a year later. Available in both sloop and yawl configurations, both sail plans are shown below.

Here are the plans.


Principal Dimensions
LOA 39'-10"
LWL 29'-6"
Beam 11'-0"
Draft 6'-8"
Displacement 16,221 lbs
Ballast 7,800 lbs
Sail Area 723 sq ft (sloop) 788 sq ft (yawl)
