Design 2758 - 25' Center Console

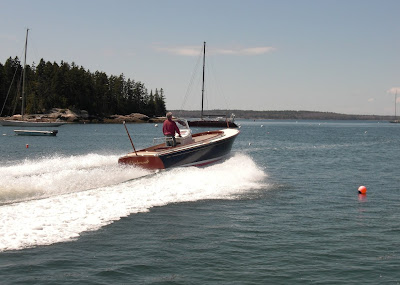

Here's an image from last Friday. We were up doing formal sea trials on the 25' center console nearing completion at Brooklin Boat Yard of Brooklin, Maine. All went well. We're only awaiting the canvas work now and the boat will be delivered to her owner.

The boat is built using cold molded Epoxy construction methods. The finish is yacht quality with many custom details such as the heavy cast stainless steel rail chocks you can see fairly well on the image below. Here's another example: This is a custom deck scupper. The sea horse is the same as can be found on our logo, extracted from the anchor.

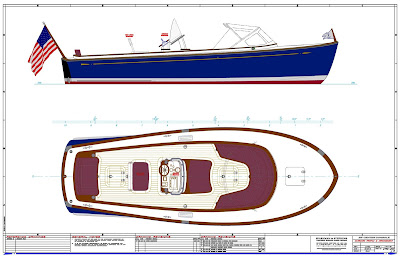

Here are the plans.


Power is provided by a single Yanmar 6BY2-220 inline 6-cylinder marine diesel generating 220 hp at 4,000 rpm for a top speed of 28 knots. She is turning a 4-bladed 17" diameter propeller.

For those who might be wondering it would cost ~$295,000 to build a sister to this boat.

Principal Dimensions
LOA 25'-0"
LWL 23'-0"
Beam 8'-11"
Draft 2'-8"
Displacement 6,430 lbs
