Design 1942 - Sagitta 20


We've previously posted articles on two other Sagitta models: the Sagitta 26 and the Sagitta 35. This 20'er is just a neat little boat with a lot of style. The boat was built by Royal Systems Yacht Yard of Denmark and introduced in 1968. She is constructed of solid fiberglass for the hull and fiberglass with balsa core for the deck. The result is a big volume 20'er.

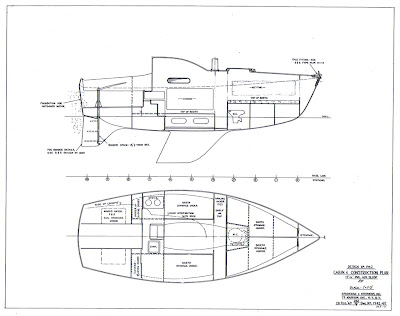

Here are the plans.


Principal Dimensions
LOA 20'-2"
LWL 17'-6"
Beam 7'-8"
Draft 3'-10"
Displacement 3,660 lbs
Ballast 1,700 lbs
Sail Area 231 sq ft
