Wednesday, July 20, 2011

Design 2060 - Tartan 46/48

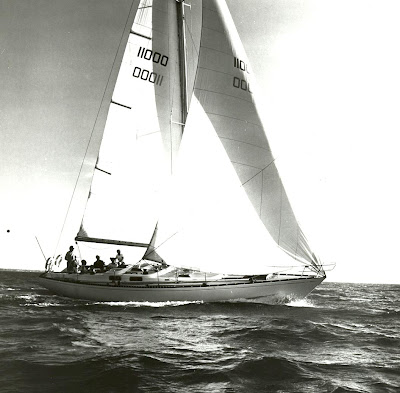

The Tartan 46 was introduced in 1972 as a big fiberglass production yacht that would rate well under I.O.R. but also be an excellent cruising boat. The production run ended in 1974 with just 8 boats being built. The boats were heavily built and with 14' of beam provided an enormous living space below.


Here are the plans.


Here's an interior shot.


A ketch (as well as yawl) version was developed with traditional transom. 6 of these were built as well. Here's the sail plan for the ketch.

Here's an image of the ketch.


A centerboard model was also added to the lineup.

Principal Dimensions
LOA 46'-8" (Tartan 46) 48'-2" (Tartan 48)
LWL 36'-0"
Beam 14'-0"
Draft 7'-7"
Displacement 29,443 lbs
Ballast 15,000 lbs
Sail Area 1,053 sq ft
