Design 2390-C3 - Steven 50 Pilothouse


This design has had many evolutions, starting with the Stevens 47 (center cockpit), Stevens 50 (aft cockpit) and then this pilothouse design. The boat eventually became the Queen Long 47 and now the Hylas 49, built by Queen Long. I'm going a bit out of sequence with these designs but in any event let's focus on the pilothouse 50. It's a great boat. It takes what was a super boat (Stevens 47) and makes it even better with a light and airy salon below.

Here's an early brochure.


And an early article about the boats.

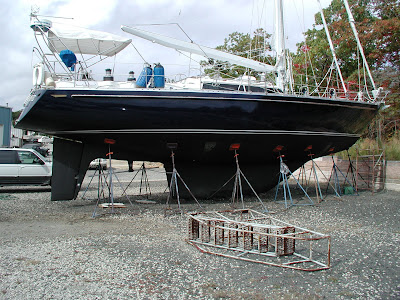

Here's a peek at her underbody.


Here are the plans.


Principal Dimensions
LOA 50'-2"
LWL 37'-9"
Beam 14'-4"
Draft 6'-0"
Displacement 31,220 lbs
Ballast 12,000 lbs
Sail Area 1,051 sq ft
