Design 1979 - Kittyhawk 10


Kittyhawk 10 was built by Palmer Johnson of Sturgeon Bay, Wisconsin. She is constructed of aluminum and was launched in 1968. She was built for W. R. Timken, chairman of the Timken Company of Canton, Ohio, a multinational manufacturer of alloy steel and tapered roller bearings.

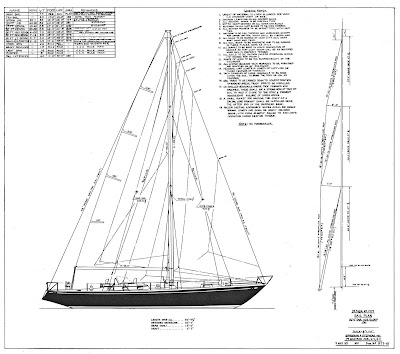

Here are the plans.

Principal Dimensions
LOA 50'-10"
LWL 36'-0"
Beam 13'-0"
Draft 6'-2" (board up) 8'-11" (board down)
Displacement 33,250 lbs
Ballast 14,000 lbs (outside) 500 lbs (inside)
Sail Area 1,146 sq ft
