Design 2383 - 28' Offshore One-Design

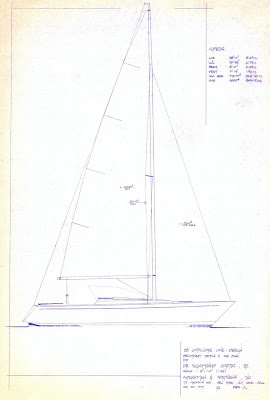

Here's a project that never got off the ground. Commissioned by an Argentinian businessman to be a "smaller version of a Tartan 10", these preliminary plans were drawn up and some fancy brochures were printed. Beyond that I have no idea...

Here's the general arrangement plan.


Principal Dimensions
LOA 28'-6"
LWL 22'-4"
Beam 8'-0"
Draft 5'-2"
Displacement 4,000 lbs
Sail Area 373 sq ft
