Design 2457 - Fairfax Trawler


We don't know much about this fiberglass trawler yacht design. There's a memo in the files that says "from James Raymond design, as revised 1982." I cant tell if James Raymond was the client and the man behind Fairfax Yachts or was a yacht designer himself. A search on the Internet reveals nothing about Raymond nor Fairfax Yachts (Virginia?).

Power was to be provided by a single modest Caterpillar 3304 NA (naturally aspirated) 4-cylinder marine diesel producing 115hp.

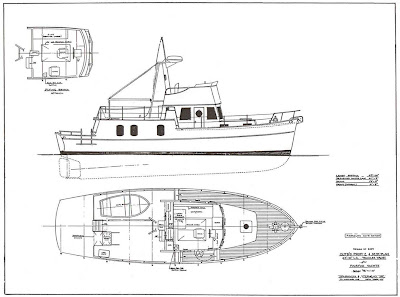

Here is the general arrangement and inboard profile.


Principal Dimensions
LOA 43'-10"
LWL 41'-9"
Beam 13'-0"
Draft 4'-5"
Displacement 36,100 lbs
