Friday, February 3, 2012

Design 1590 - Scatoulista II


This beautiful 5.5-meter racing yacht was built by the Corsier-Port shipyard of Geneva, Switzerland. She was launched in 1960 and is one of only ten 5.5-meters designed by the firm. It is interesting to note that of the ten, four consecutive boats were built by the same yard between 1960 - 1962. They are designs #1590 (Scatoulista II), #1633 (Aramis X), #1696 (Athena) and #1731 (Roy).

The boat was built for the Aga Khan (IV), a repeat customer for Sparkman & Stephens. Scatoulista II (SUI-041) was constructed of carvel planked mohagany.

The boat is now named Laetitia and makes her home in the Netherlands. Like many classic 5.5-meters, she has been retrofitted with a separate spade rudder.

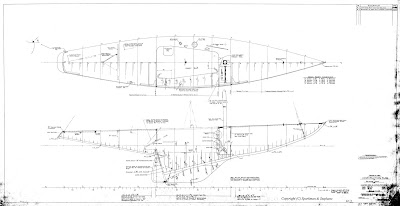

Here are the plans.


Principal Dimensions
LOA 32'-0"
LWL 22'-3"
Beam 6'-3"
Draft 4'-5"
Sail Area 312 sq ft

2 comments:

  1. Hallo,
    the displacement in salt water is 1,925t; more details can be seen on this 5.5m Inventory site:
    http://5.5inventory.org/SUI/041/
    Kind regards,
    Kaspar Stubenrauch
    President Int. 5.5m Class
