Design 2413-C3 - Stevens 42


This design is a derivative of design #2413, the Stevens 40 center cockpit. She is an aft cockpit version of the 40 with new styling, interior layout and extended transom. This was commonly done to utilize an existing hull mold. The boats were built by Queen Long Marine of Taiwan. Only 5 boats were built to this design, which was introduced in 1987.

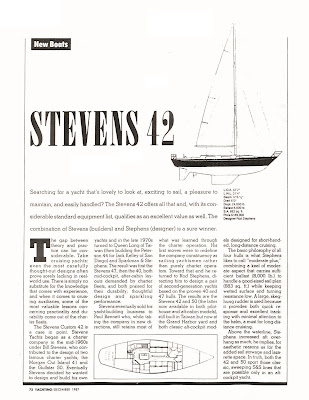

Here's an article about the boats from Yachting magazine from '87. Please double click for zoom.

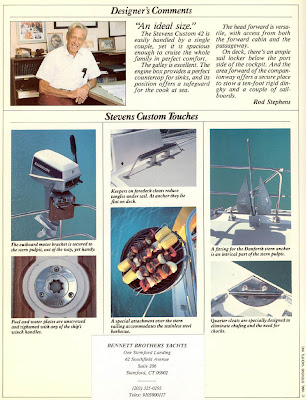

And the brochure.

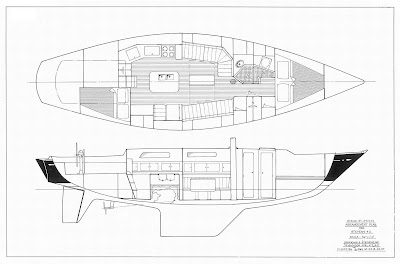

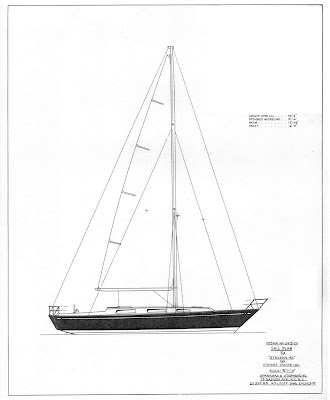

And finally the plans.


A peek at her interior. Queen Long builds a great production boat.


Principal Dimensions
LOA 42'-2"
LWL 31'-4"
Beam 12'-6"
Draft 6'-0"
Displacement 24,000 lbs
Ballast 8,000 lbs
Sail Area 767 sq ft

1 comment:

  1. My wife and I own DAWN, the vessel pictured twice above. I would enjoy talking with others who own Stevens Custom 42s.

    Dutch Dresser, Bethel, Maine
